sCLASS™ Inboard Lift

The inboard lift uses several innovative mechanisms to ensure a safe and efficient operation.

‘S’ is for safety, and we believe we’ve produced the safest inboard lift available.

The sCLASS™ has been designed to protect the lift user and the lift. The unique safety mechanisms such as the ECU activated anti-drift hook make this lift the most reliable and advanced on the market.

The sCLASS™ wheelchair lift is available in three models, which differ from one another in type of loading platform:

sCLASS™ P, with a whole one-piece platform: during stowing phase platform simply rotates from loading position to vertical and back during the deployment phase. Handle Safety Belt is optional.

sCLASS™ SP, with a loading platform split longitudinally: the two parts of the platforms rotate to form a single loading platform during the deployment phase and they are separated automatically when stowing creating a space that can be used as an emergency exit from the vehicle. Handle Safety Belt is optional.

sCLASS™ FP, with a folded platform deployed automatically during the opening phase and folds automatically during stowing.

P model

P

SP model

SP

FP model

FP

Service reminders and remote diagnostics

The sCLASS works with the Mobility Networks App which provides high-level customer support from warranty registration to service reminders and diagnostic capabilities.


Roll-off ramp

The roll-off ramp (also known as the outer barrier or wheelchair retention device) features a hard-wearing rubber edge which creates a smooth bridge between the lift and the ground. It is tested with a wheelchair driven at 2-2.1 m/s to ensure it is a safe and efficient barrier. The roll-off ramp locks vertically into place which removes the risk of passengers rolling backwards off of the platform.


Anti-rattle & Super quiet operation

Anti-rattle bolt covers are used on the roll off ramp which dramatically reduces noise and vibration.




Sensitive Floor

The sensitive floor is used between the lift and the floor of the vehicle. It stops the lift from operating when it senses the pressure of someone standing on it. This prevents passengers stepping out of the vehicle when the lift is in use

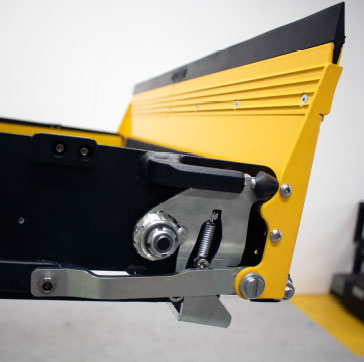

Roll off ramp lock

The roll-off ramp locks vertically into place which removes the risk of passengers rolling backwards off of the platform.


Quick change handrails

There are 3 different types of handrail available and each can be replaced easily and quickly as the handrail fixing sits on the outside of the frame.

Handrails are tested to 1112N force in all directions and have been increased in diameter.


sCLASS™ Wheelchair Safety Lift Handrail Restraint Belt

An important safety implementation for any wheelchair lift, the handrail restraint belt restricts the movement of the lift user on the platform. On the FP (Folding Platform) version the Handrail Safety Belt comes as standard. The Handrail Safety Belt is optional but RECOMMENDED for the sCLASS™ P and SP Easy to install and activate, the kit acts as an interlock and will stop the operation of the lift if not latched.

App connectivity

Service reminders

Service intervals are every 6 months or 4000 cycles.

Safety focused

Ensuring safety and security is at the forefront of everything we do.

Turn your phone in to a remote

You can operate your lift from a distance and receive real time diagnostic information using the app.

Mobility Networks Smart Lift app

Lift inventory

Connect and access all your lifts in a single place.

Lift diagnostics

The intelligent ECU constantly monitors all aspects of the lift and informs the user of any irregularities.

Always up to date

Your lift stays current and is constantly improved.

Download the app

Available for Android and iPhone

Download FOR ANDROID Download FOR iOS

Service Information and Videos

* Hover over the area of the lift you require more information.
