TRAXX Slim Cassette Lift

The 325 kg automatic slim cassette lift

We set the industry benchmark for quality, engineering expertise and professional after sales services.

The Traxx 3.0 lift features a super thin cassette, sleek design for high end vehicles, with angular sensors, extra-long and wide platform, manual override, bespoke brackets and several other intelligent features.

No vehicle modification is required

The Traxx 3.0 lift is an electro-hydraulic, under frame, super-thin wheelchair-lift for side installations. The lift features a completely closed box with an automatic cover. Recommended installation for Volkswagen T5 - T6 and Mercedes-Benz V Class/Vito.

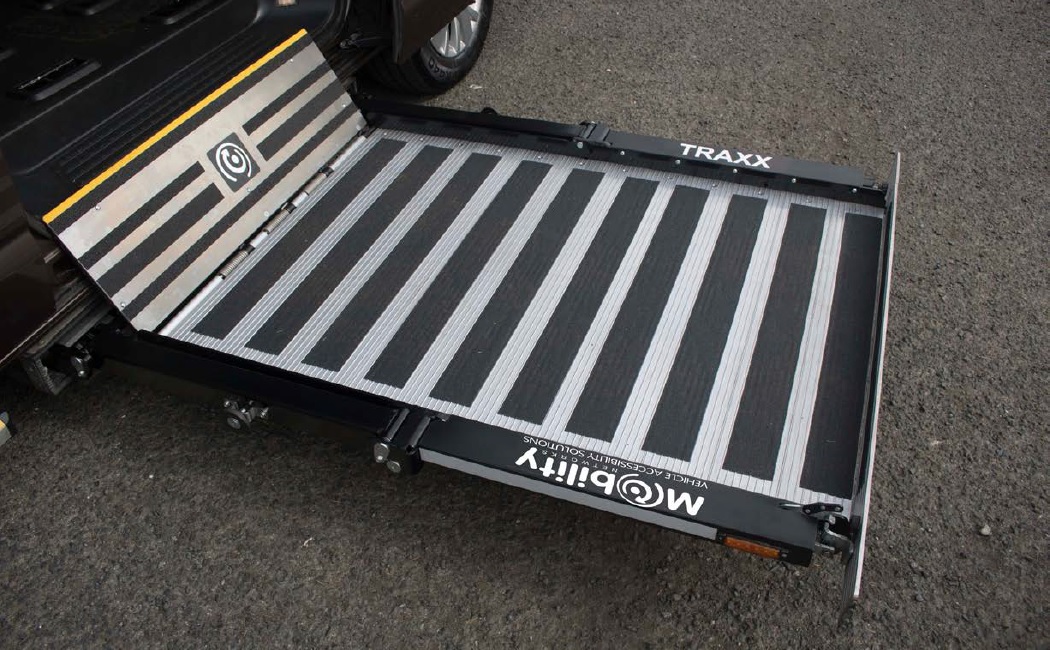

TRAXX 3.0 - Longest and widest platform

The automatic ramp is the longest and widest on the market and makes the lifting experience more pleasant with extra space for the wheelchair user and the operator.

background

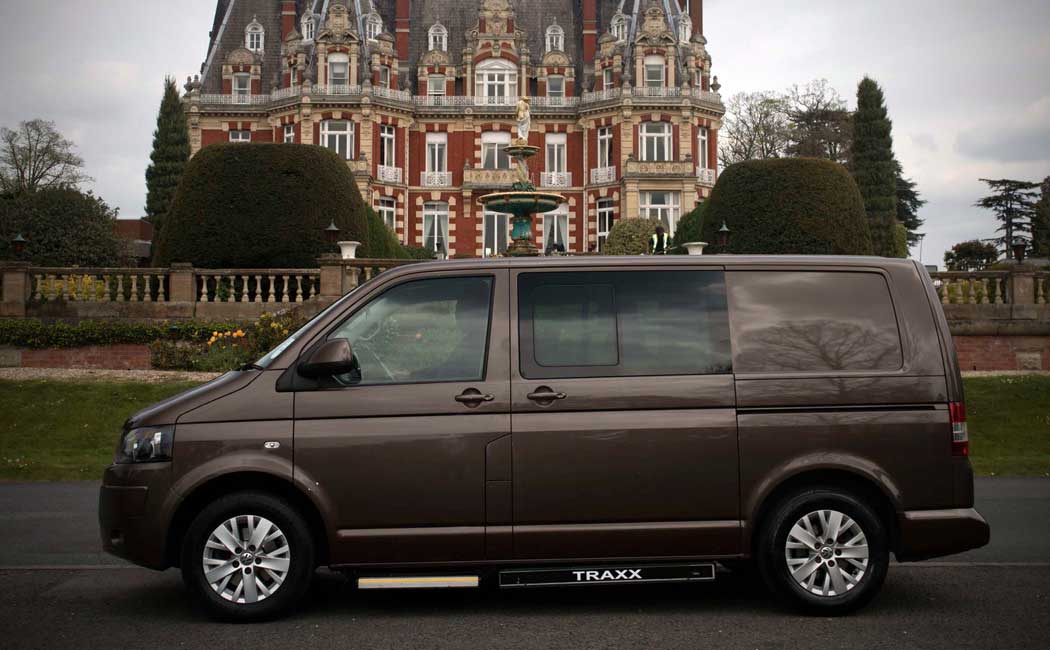

TRAXX 3.0 - Super thin cassette lift

The automatic Traxx 3.0 lift is super thin and it is fitted neatly under the vehicle body. The super thin design cassette box means that there are no modifications required to the exhaust system or fuel tank.

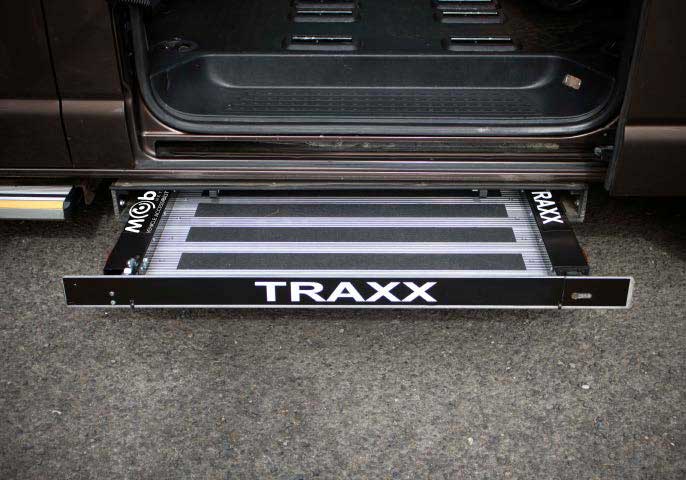

Accessible Manual Operation

The electro-hydraulic Traxx 3.0 lift is equipt with an auxiliary emergency pump for emergency operation.

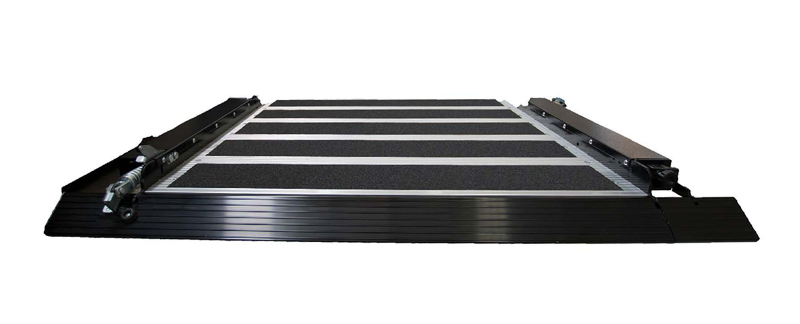

Durable anodised aluminium bridge plate

The new, scratch resistant anodised aluminium bridge plate has been added to the latest Traxx 3.0 cassette lift for improved aesthetics and durability.


Easy access manual override

The front Easy Access Manual Override reduces vehicle off road time (VORs) as the vehicle does not need to be lifted up to override the hydraulic system.

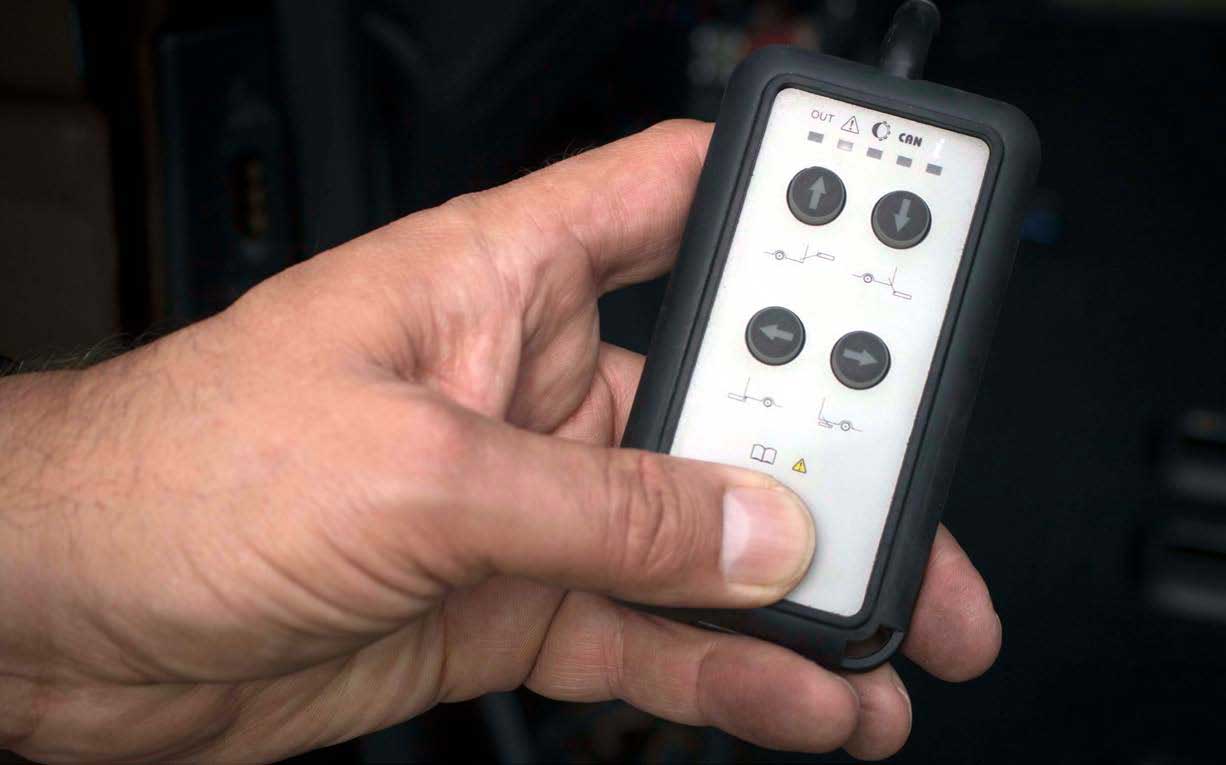

Four-button hand control

A four-button hand control with height setting procedure to reset vehicle heights, which works with the self-levelling sensors.


General characteristics

Platform usable size

1200 x 840 mm

Lifting capacity (SWL)

325 kg

Lift standard weight

150 kg

Input

12/24 V

Cassette dimmentions

1725 x 1115 x 67 mm ( L | W | H )

Max. lifting height

650 mm

Certificates

SWL and CE certificates issued and ISO accredited production

Vehicle compatibility

VW - T5 | T6, MB - V-Class | Vito | Viano | Sprinter, Ford - 3300 | Tourneo, Ford - Transit Custom, Ford - Transit (Front Wheel Driver), Fiat - Ducato 2017 | Talento, Peugeot - Traveller, Toyota - Proace, Citroen - Space Tourer

Safety compliance

Fully PSVAR, DDA, COIF, SVTA and BS6109 Part 2 compliant

Type approval

Meets ECWVTA (European Whole Vehicle Type Approval)
