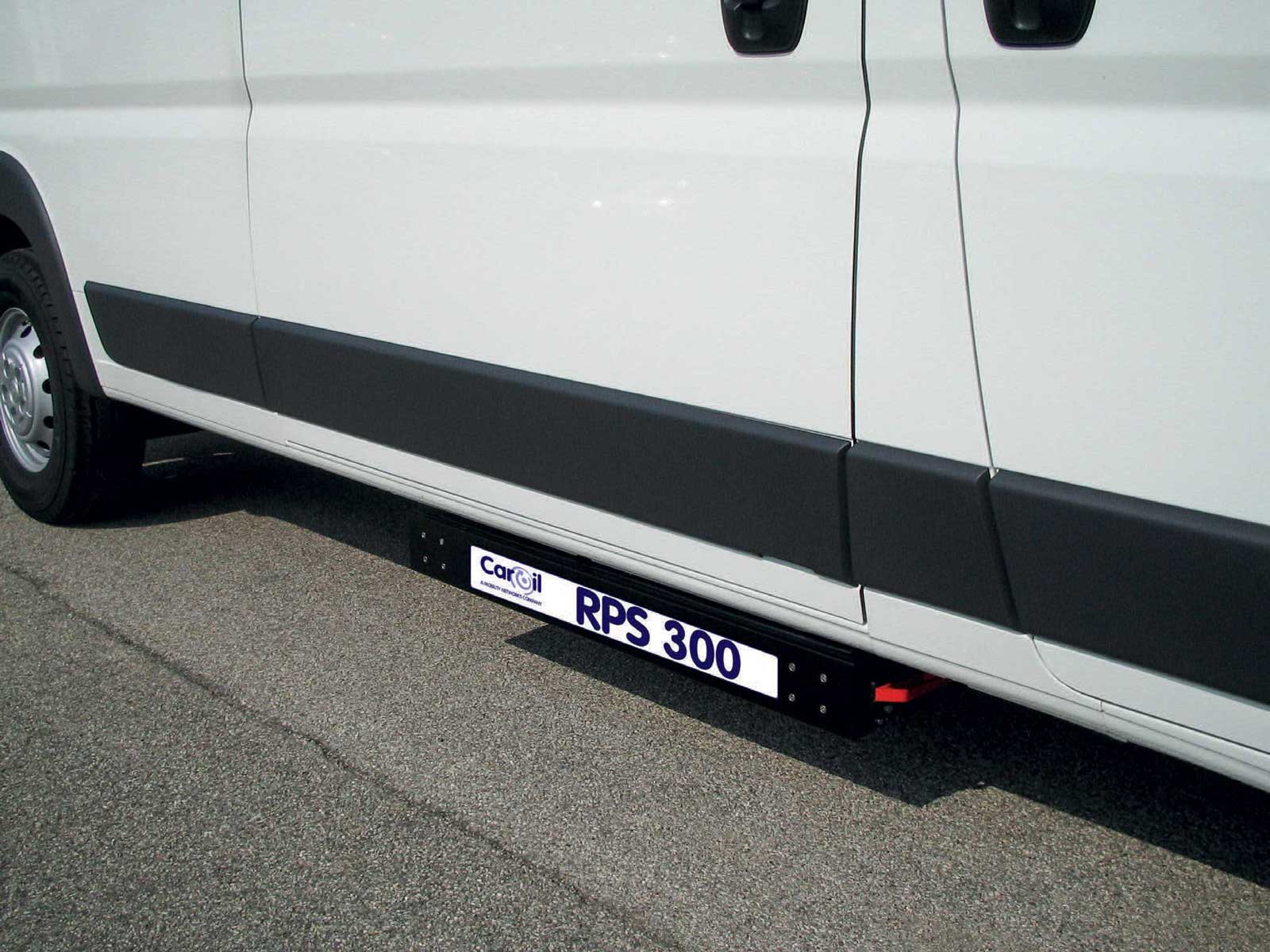

RPS 300 Side Cassette Lift

Combining simplicity of operation with a versatile installation

Compact design & flexible installation

The Mobility Networks Group with over 25 years experience is proud to present the RPS range of ultra compact side cassette lifts for Personal and Public mobility.


Universal under frame design - No vehicle modifications required

The RPS range of side cassette lifts is ultra compact and offers flexible modes of installation on the rear or side of small and medium size vehicles in a variety of platform types.

Slim design of a wheelchair lift

Only 100 mm in thickness

This under-frame hydraulic lift can be installed in the side of a vehicle or at the rear (depending on free space).
Available as a lift only or in the combined version "lift + automatic side step".
This lift has a completely closed box with a front steel cover which opens and closes automatically.

Optional Features

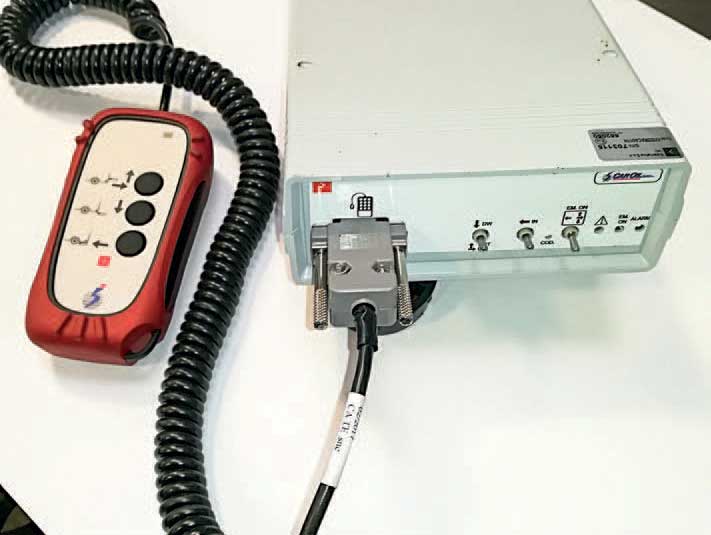

ECU & Push Button Panel

ECU & Push Button Panel

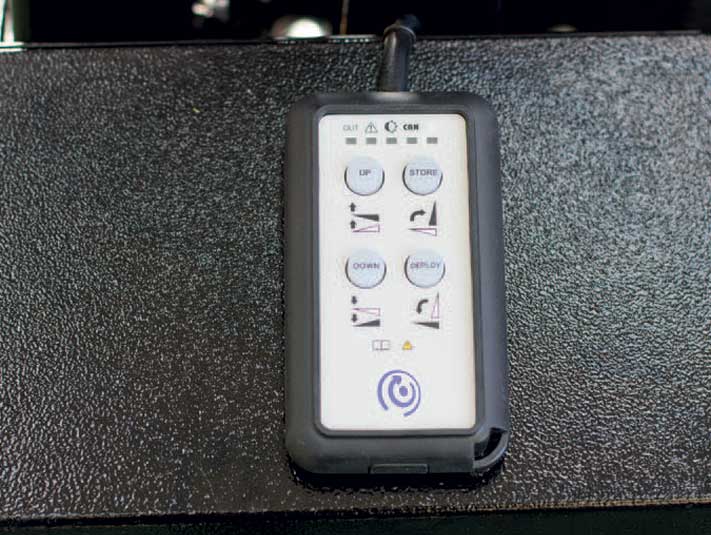

Plug & Play Backlit Remote Control

Plug & Play Backlit Remote Control

Extended Handrails

Extended Handrails

General characteristics

Lifting capacity

300 kg | 661 lbs

Lift own weight

180 kg | 296 lbs

Platform dimensions

1200 x 800 mm | 47.24 x 31.49 inches

Cassette dimensions (L x W x H)

1700 x 1023 x 100mm | 66.92 x 40.27 x 3.93 inches

Max. lifting height

760 mm | 29.92 inches

Input

12/24 V

Emergency pump

Electro-hydraulic unit equipped with auxiliary emergency pump

Controls

Controls with keypad or Bluetooth radio control

Automatic ramp

Automatic ramp flaps on ground and at vehicle level

Installation

LOLER Installation Compliance

Safety compliance

Fully PSVAR, DDA, COIF, SVTA and BS6109 Part 2 compliant

Emergency operations

Meets ECWVTA (European Whole Vehicle Type Approval)
