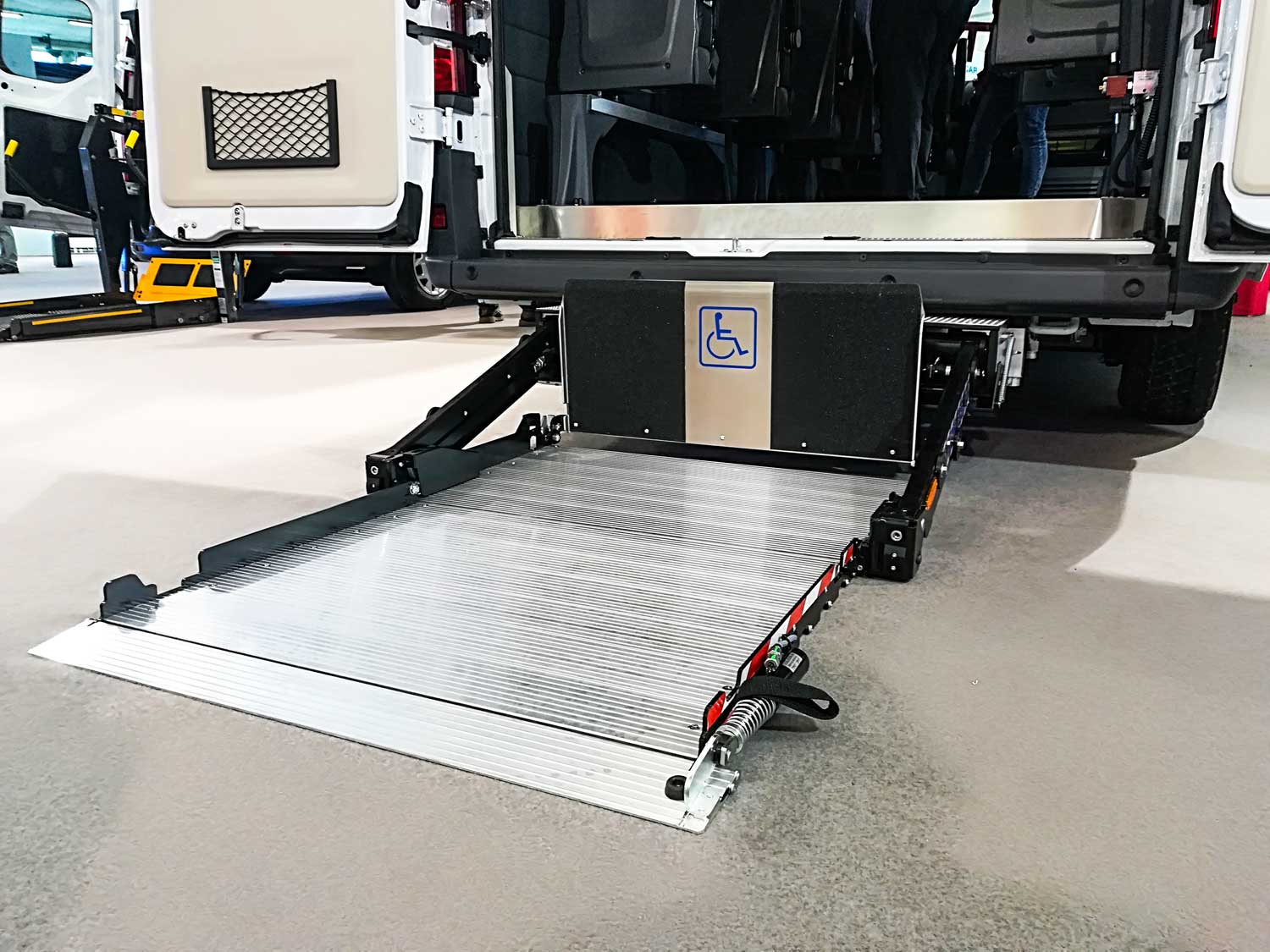

RPH Rear Cassette Lift

The Mobility Networks Group with over 25 years experience is proud to present the RPH range of ultra compact rear cassette lifts for Personal and Public mobility.

Combining simple installation with versatile operation

The RPH range of rear cassette lifts are ultra compact and offer flexible modes of installation on the rear or side of small and medium size vehicles in a variety of platform types.


Universal under frame design

Combining simplicity of operation with a versatile installation.

Optional Features

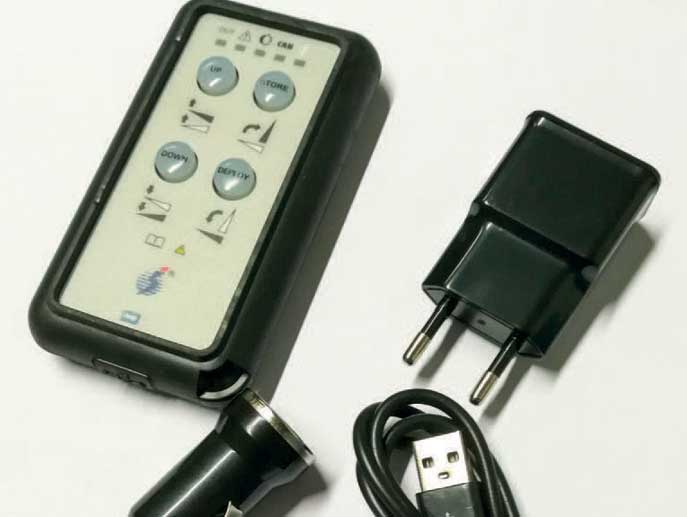

Wireless Remote Control

Wireless Remote Control

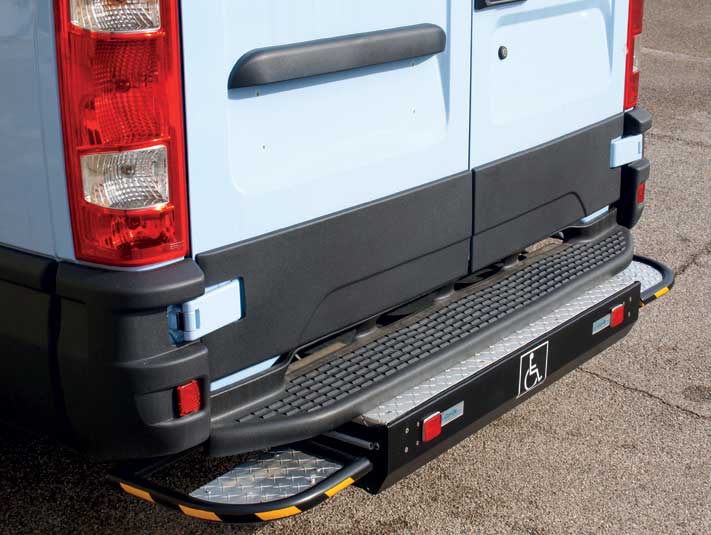

Flashing Lights & Step Cover

Flashing Lights & Step Cover

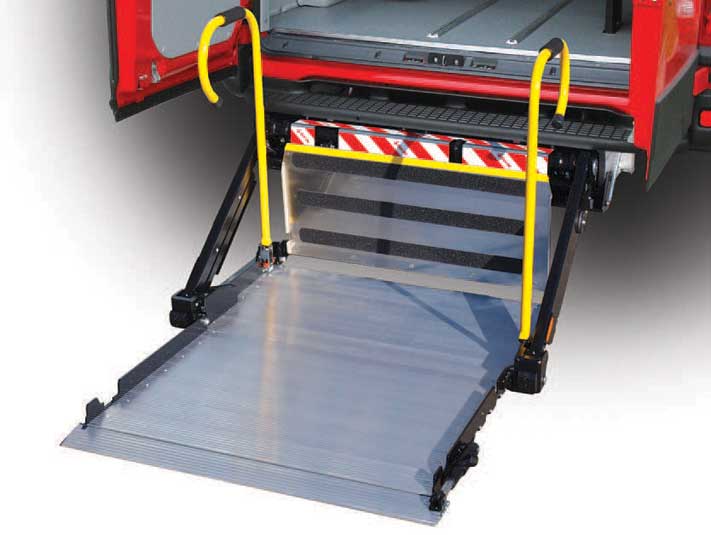

Extended Handrails

Extended Handrails

General characteristics

RPH 35.13

Lifting capacity

350 kg | 772 lbs

Lift own weight

150 kg | 330 lbs

Platform dimensions

1200 x 820 mm | 47.24 x 32.28 inches

Cassette dimensions (L x W x H)

1054 x 1070 x 145mm | 41.49 x 42.12 x 5.7 inches

Max. lifting height

1015 mm | 39.96 inches

Input

12/24 V

Emergency pump

Electro-hydraulic unit equipped with auxiliary emergency pump

Controls

Controls with keypad or Bluetooth radio control

Automatic ramp

Automatic ramp flaps on ground and at vehicle level

RPH-TL 30.15

Lifting capacity

300 kg | 661 lbs

Lift own weight

180 kg | 296 lbs

Platform dimensions

1200mm X 810mm | 47.24 x 31.88 inches

Cassette dimensions (L x W x H)

1065 x 1073 x 145mm | 41.92 x 42.24 x 5.7 inches

Max. lifting height

950 mm | 37.40 inches

Input

12/24 V

Emergency pump

Electro-hydraulic unit equipped with auxiliary emergency pump

Controls

Controls with keypad or Bluetooth radio control

Automatic ramp

Automatic ramp flaps on ground and at vehicle level
