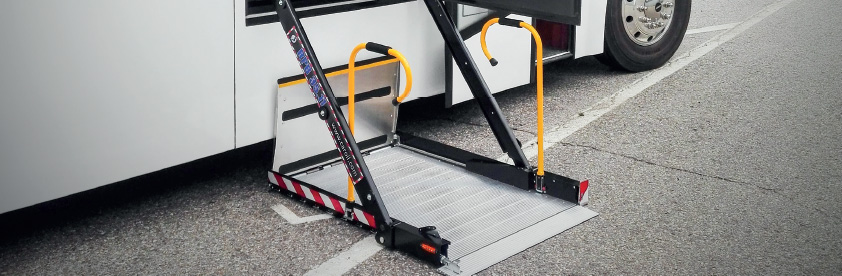

RPB 35.11

The perfect lifts for small spaces

Automatic lifts, applications in high floor city buses

There are several models and platform sizes to suit a variety of requirements.


Compact and flat cassette

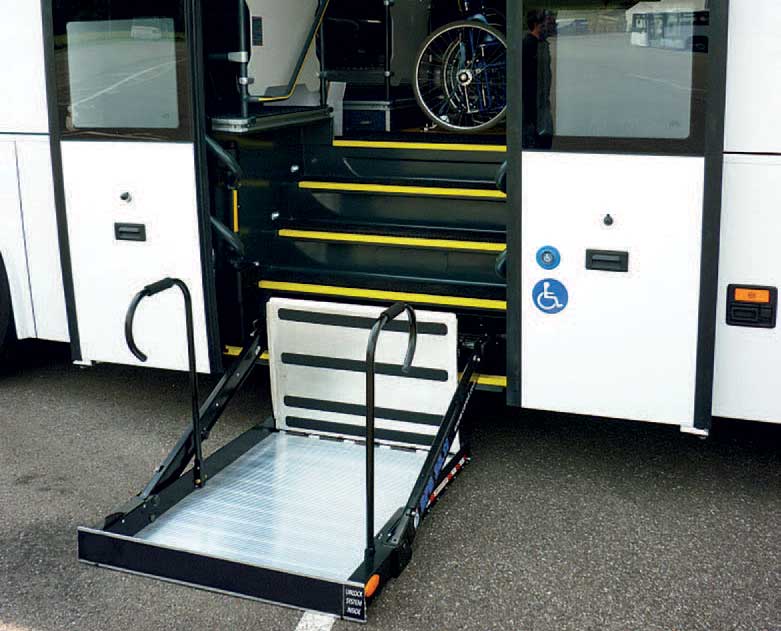

The RPB 35.11, a step compartment cassette lift, has been specially designed to be versatile, reliable and reduce installation time.

Features

  • Easy access manual override
  • Aluminium platform
  • Light alloy structure
  • Anti-slip surface
  • Anti-slip handle

Versatile and cost-effective

The cassette and platform are built with high resistance light aluminium and there is a ‘one size fits all’ approach to fitting this lift.

background

Just 3 steps

The lift can be adjusted to fit any vehicle step. Fixing brackets, which slide along cassette side rails, can adapt themselves to a variety of vehicle frame configurations. Electrical and hydraulic connections to the external powerpack are quick to adjust and do not require specific tools.

General characteristics

Platform size

802 mm (w) x 1212 / 1312 mm (l)

Cassette size

1026 mm (w) x 1955 / 2055 / 2355 mm (l) x 145 mm (d)

Max. lifting height

900 / 1100 / 1250 mm (HDI) (Ground to vehicle floor)

Lift standard weight

250 kg (35.11) | 263 kg (HDI) 285 kg (HD)

Lifting capacity (SWL)

300 kg (HD) | 400 kg

Standards

Fully PSVAR, DDA, COIF, SVTA and BS6109 Part 2 compliant

Certificates

SWL and CE certificates issued and ISO accredited production

Installation

LOLER Installation Compliance

Type approval

Meets ECWVTA (European Whole Vehicle Type Approval)
