RC 120NBT 04 Ramp

Reliable and cost-efficient technology

Simple, safe and efficient

The ramp has an anti-slip surface with sensors and a protective coating to increase durability and long life. The ramp aligns with the vehicle door and features a manual emergency system. The sensitive mat surface and sensitive edge mean that safety will never be compromised for passengers or operators. It can be manually opened for easy maintenance and the compact cassette platform along with the internal tracking system make the RC 120 NBT 04 a simple, safe and efficient option for making a vehicle accessible to everyone.

background

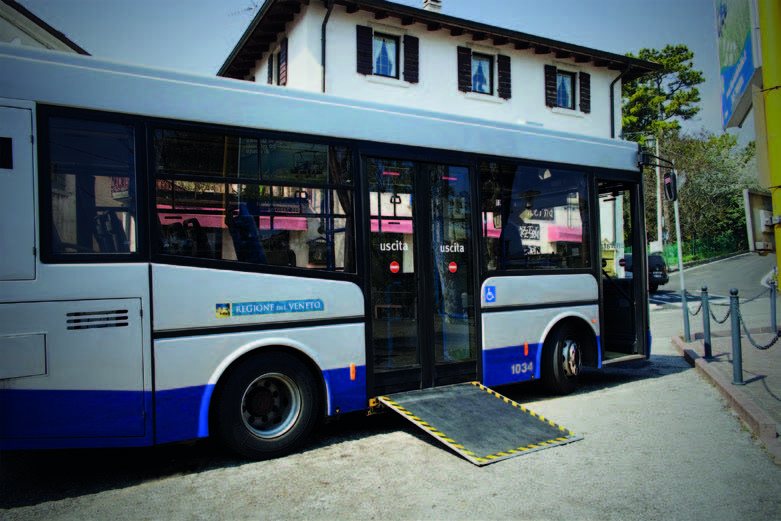

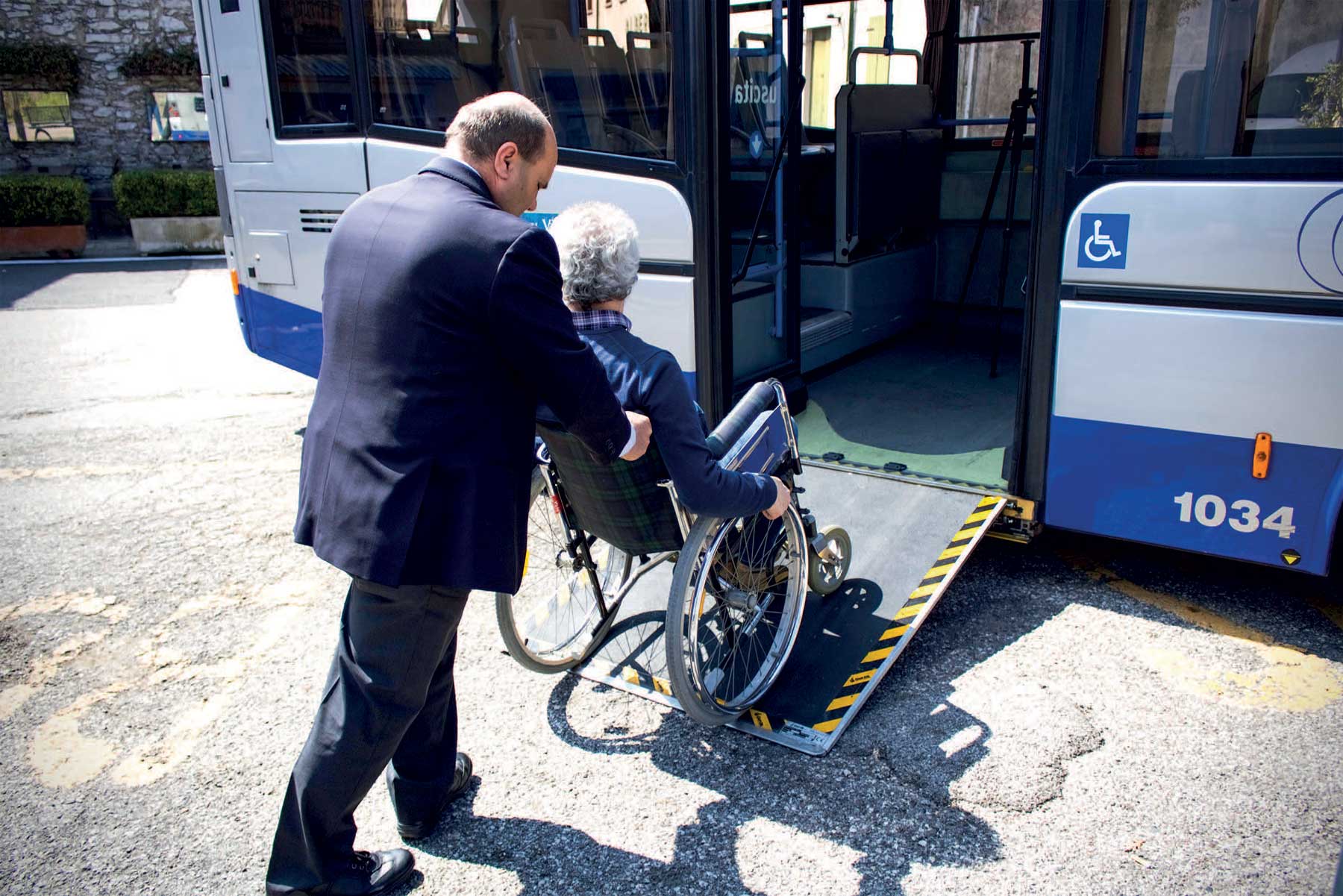

Loading ramp for low floor city buses

The RC 120 NBT 04 ramp is used by the leading Public Transport Operators in the EU for its reliability and cost-efficiency.

The ramp weighs 75K kg and has a load capacity of 300 kg. It only takes 6 seconds to fully mobilise which means it's an efficient piece of equipment to use with buses when time is of the essence.

Lightweight and high loading capacity

Smart design for a super-compact cassette profile

A unique lifting solution in front entrance accessibility


Optional Features

Electronic Unit

Electronic Unit

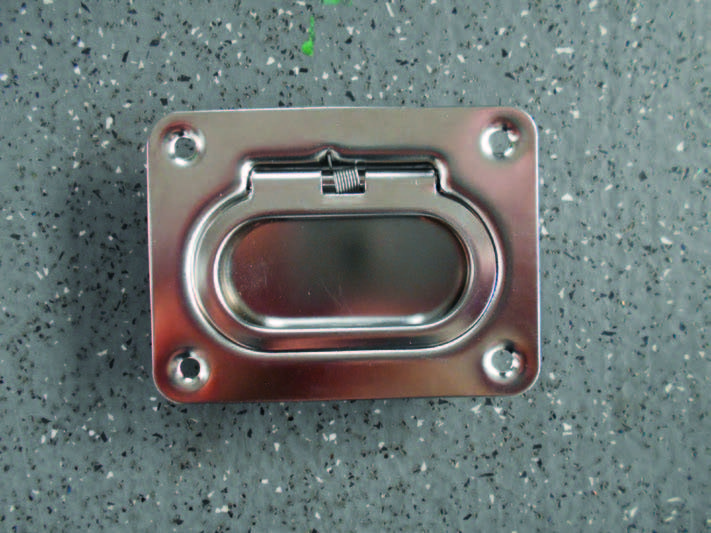

Small handle (manual ramp)

Small handle (manual ramp)

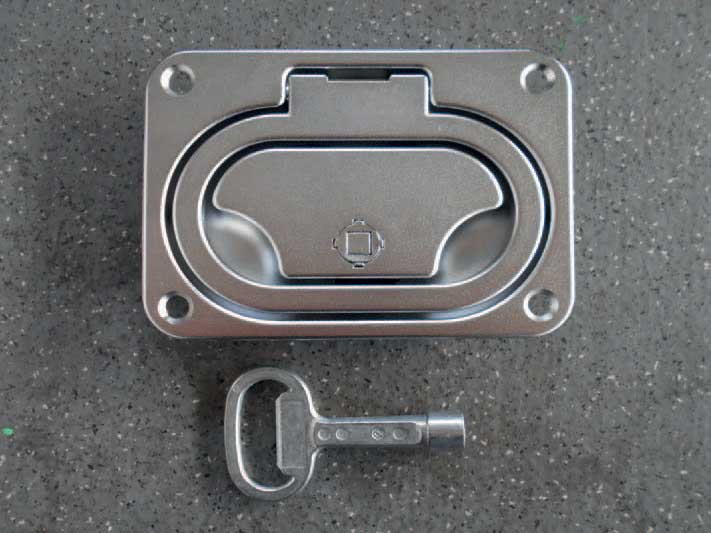

Handle with key (manual ramp)

Handle with key (manual ramp)

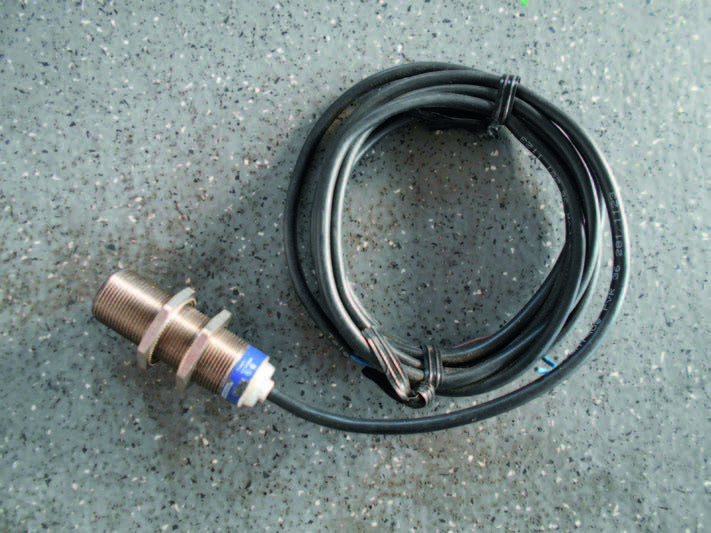

Open platform sensor

Open platform sensor

General characteristics

Dimensions

1200 mm (w) x 1400 mm (l)

Extraction / Retraction Time

6 seconds

Nominal power

74 W

Ramp standard weight

75 kg

Lifting capacity (SWL)

300 kg

Standards

Fully PSVAR, DDA, COIF, SVTA and BS6109 Part 2 compliant

Certificates

SWL and CE certificates issued and ISO accredited production

Installation

LOLER Installation Compliance

Type approval

Meets ECWVTA (European Whole Vehicle Type Approval)
