Access™ Lite & A-PP Cassette

Operators’ first choice in cassette lifts

The best-selling cassette lift with enhanced safety features in manual or fully-automatic options

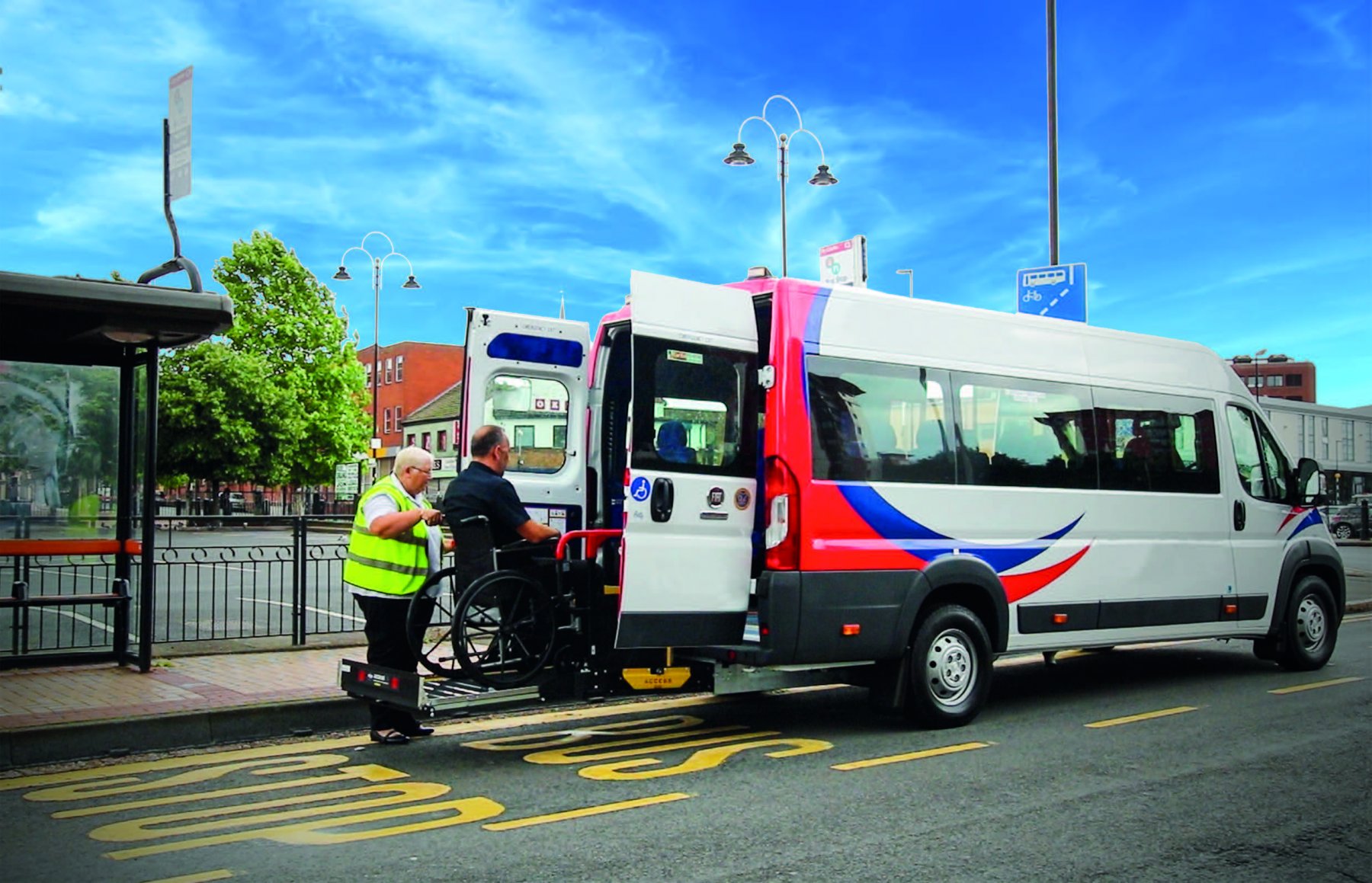

With a fast and efficient installation, durable, safe and stable platforms, and a fully or semi automatic platform; it is easy to see why this versatile lift is the number one choice for minibuses.

background

Robust, safe and super stable platforms

The Access™ Lite & A-PP Cassette can be ordered with a wide range of optional extras including: LED warning lights, wireless remote controllers, anti-corrosion technology and manual operations options.

Flexible design

It delivers the widest range of options available today and its flexible design ensures compatibility with all community transport, local authority vehicles and delivery vans. Whether the Basic, Elite, Premier or Fully Automatic version is specified, installation is straightforward and efficient.

background

Robust, Stable and Safe Powered Platform

This lift is stowed externally under the vehicle floor in a compact and unobtrusive galvanised box that protects the platform, bridging plate and mechanisms from corrosion.
When operated via a two-button roaming controller, the lift platform will automatically deploy from the cassette.
Manually operated handrails can be replaced by electrically powered versions if the Fully Automatic model is specified.
Automatic ‘roll-off stops’ ensure maximum safety when lifting and lowering wheelchair passengers or cargo. There is a choice of 1410, 1510 and 1610 mm platform lengths with associated standard widths of 825 or 925 mm.

Lightest solution for vans, mini and midi-buses and can safely load 400 kg as standard.


Optional Features

Extendable Handrails

Extendable Handrails

Audible warning device

Audible warning device

Flashing light

Flashing lights

cycle counter

Cycle counter

Remote control

Remote control

Stop safe ultra

Stop safe ultra

General characteristics

Platform size

825 / 925mm (w) x 1410 / 1510 / 1780 mm

Cassette size

1000 / 1100 mm (w) x 1200 / 1520 mm (l) x 175 mm (d)

Max. lifting height

1145 mm (Ground to vehicle floor)

Lift standard weight

155 / 167 / 180 kg

Electrics

12 / 24 V

Standards

Fully PSVAR, DDA, COIF, SVTA and BS6109 Part 2 compliant

Certificates

SWL and CE certificates issued and ISO accredited production

Installation

LOLER Installation Compliance

Type approval

Meets ECWVTA (European Whole Vehicle Type Approval)
